amomii Quill

amomii Quill

$99.99
$99.99
Shipping calculated at checkout.

Build the skills. Solder the shortcut.

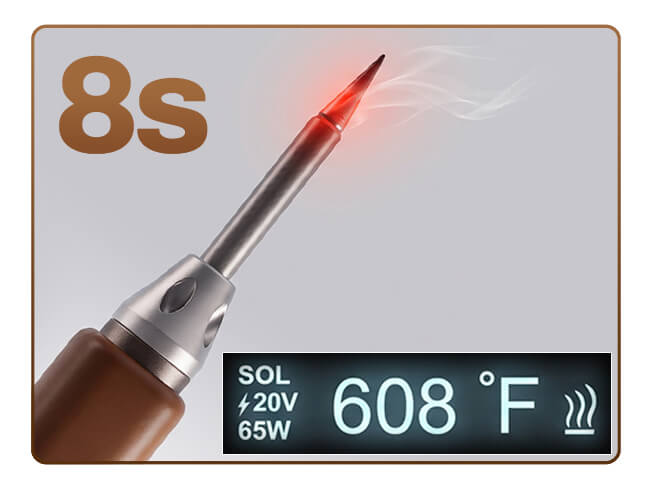

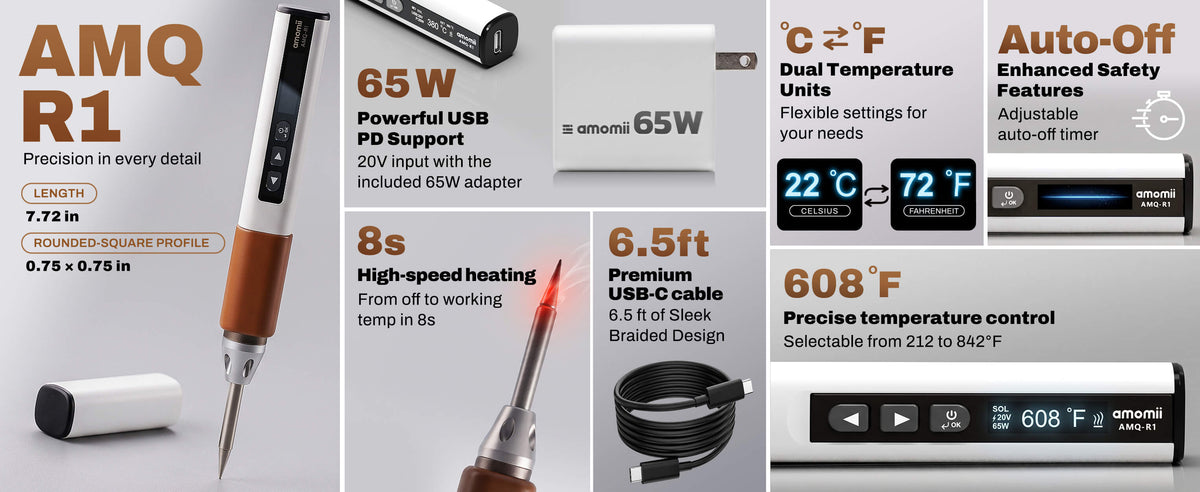

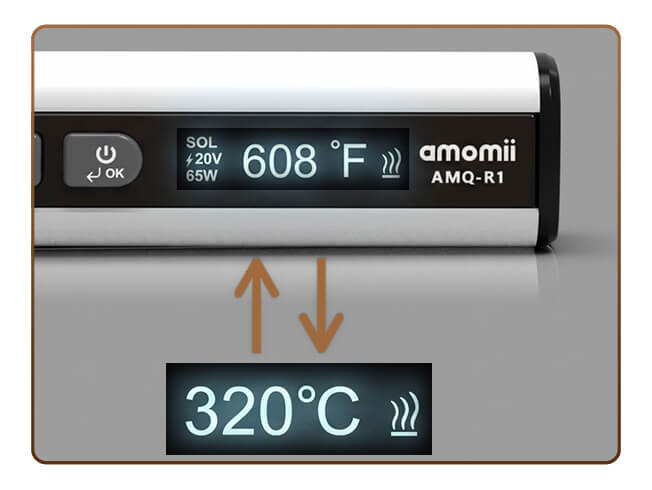

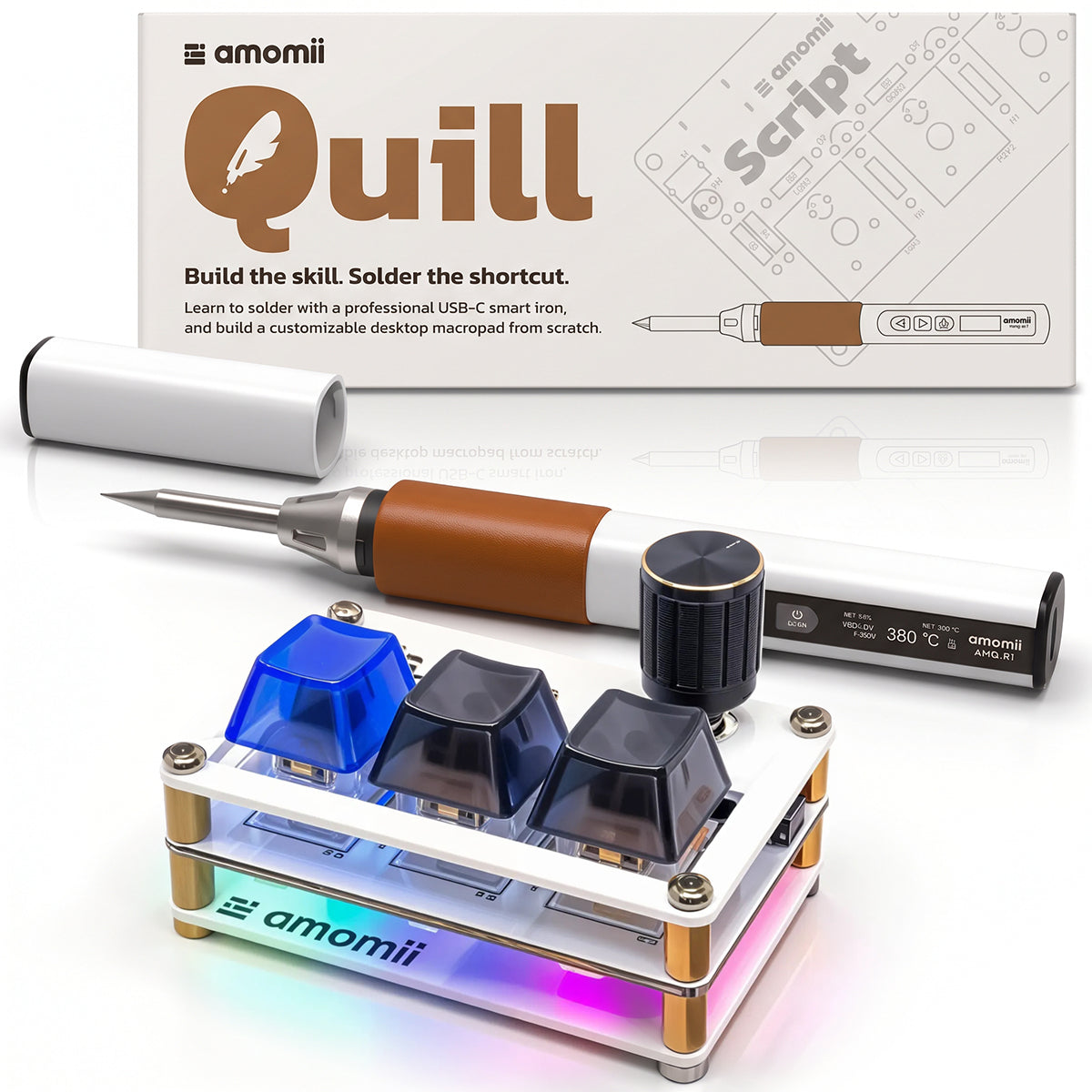

Meet the amomii AMQ-R1, a USB-C smart soldering iron that heats to 300°C in about 8 seconds on its included 65W power supply. Set any temperature from 100 to 450°C (212 to 842°F) and watch temperature, voltage and wattage live on the OLED screen. Leave it resting for 5 minutes and it drops to a low standby temperature, then reheats as soon as you pick it up. Leave it longer and it switches itself off after a time you choose. The slim 67g pen-style body is easy to control, and the 2m cable gives you room to work anywhere on your bench.

It arrives ready to work, with a stand, brass tip cleaner, solder, flush cutter and power supply all in the box.

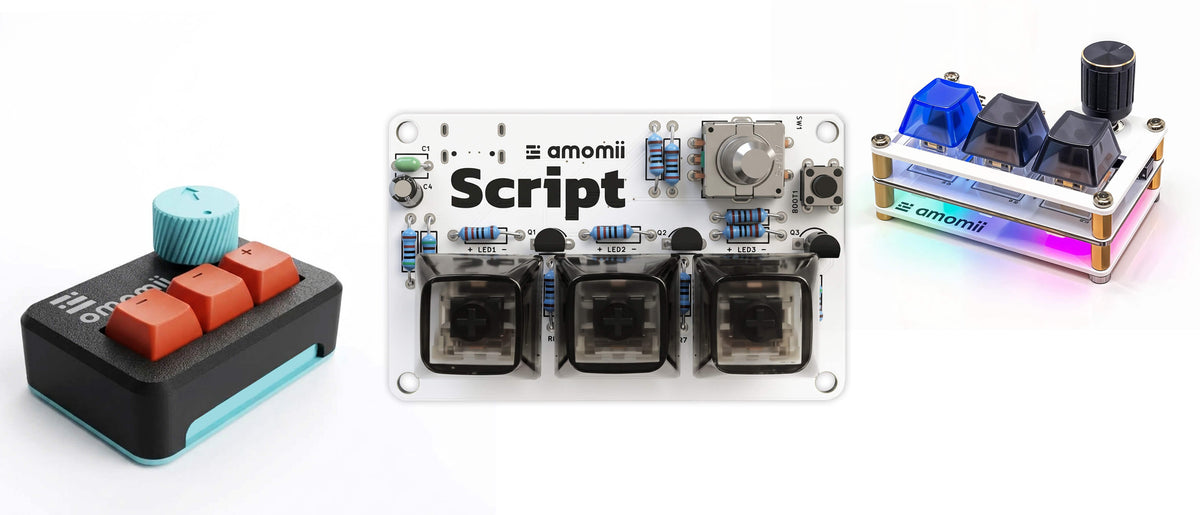

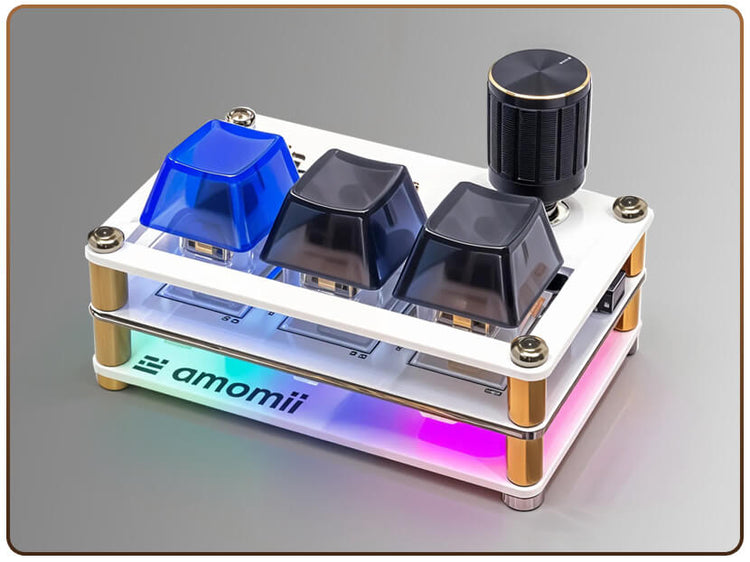

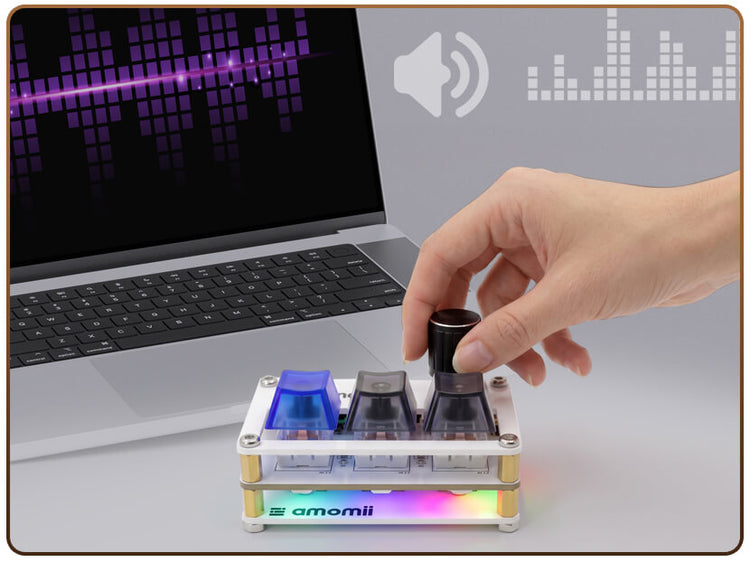

Then it gives you something worth soldering. Your first project is the amomii Script, a 3-key mechanical macro pad with a clickable volume dial, ice-blue key backlights and RGB underglow. The fiddly surface-mount parts are done at the factory, so you start straight away on beginner-friendly through-hole joints. As you go, you learn how LEDs, resistors and transistors really work.

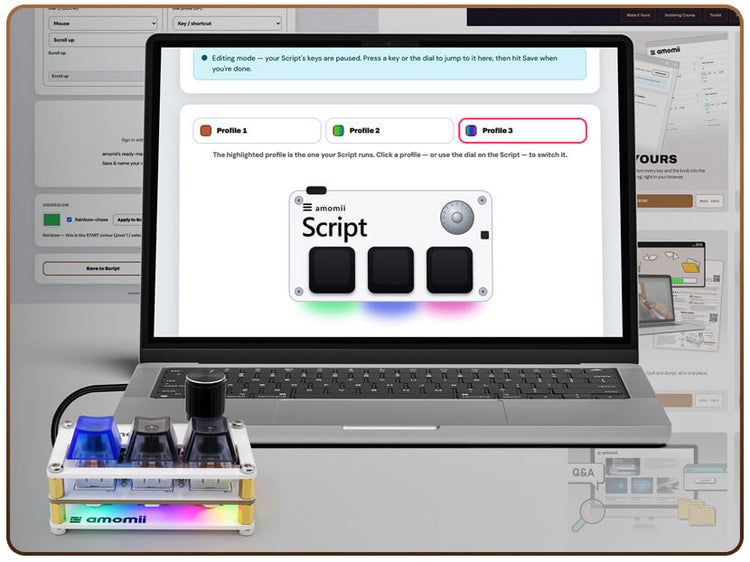

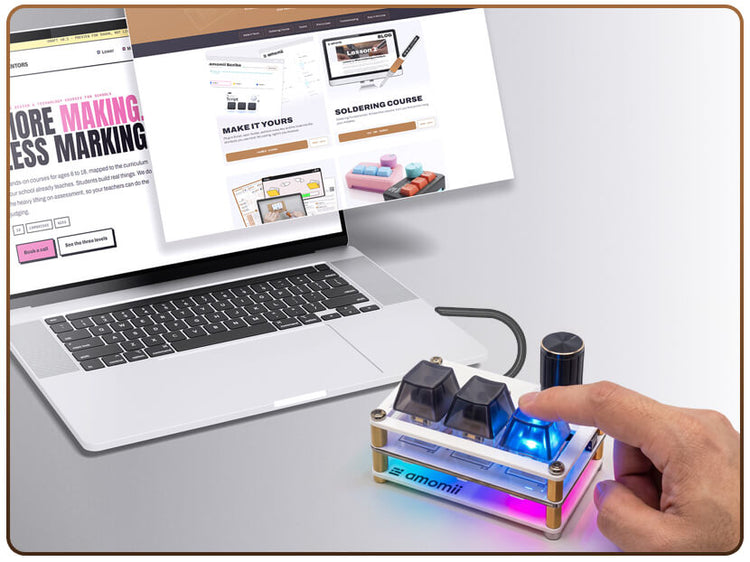

When it's built, plug it in, open amomii Scribe in your browser, and turn each key into any shortcut, media control or macro you like. You get a great iron, plus a first build you'll use every day.

Real tools. Real skills. Actual Intelligence.



Out of stock

Ask a question

The fields marked * are required.

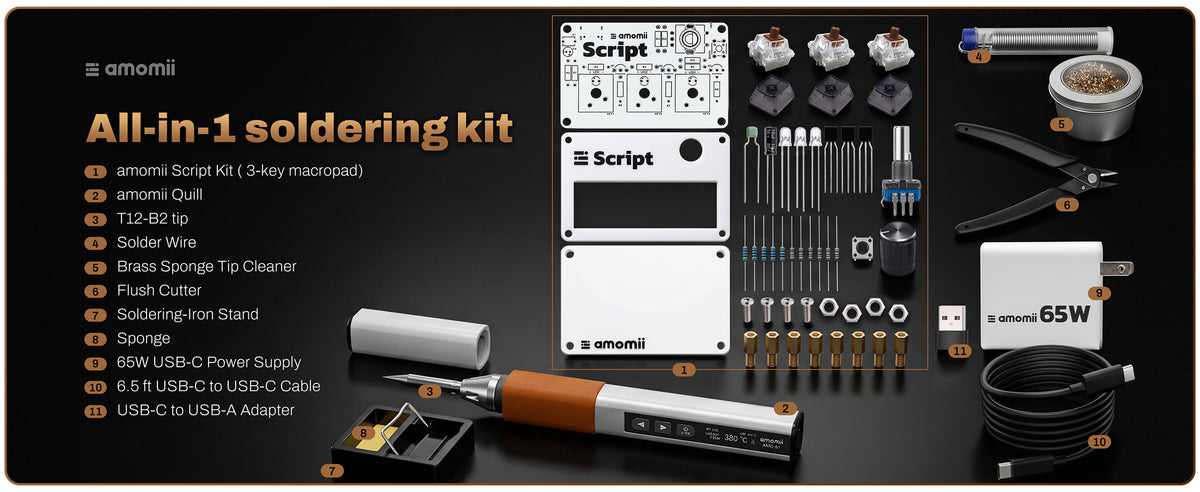

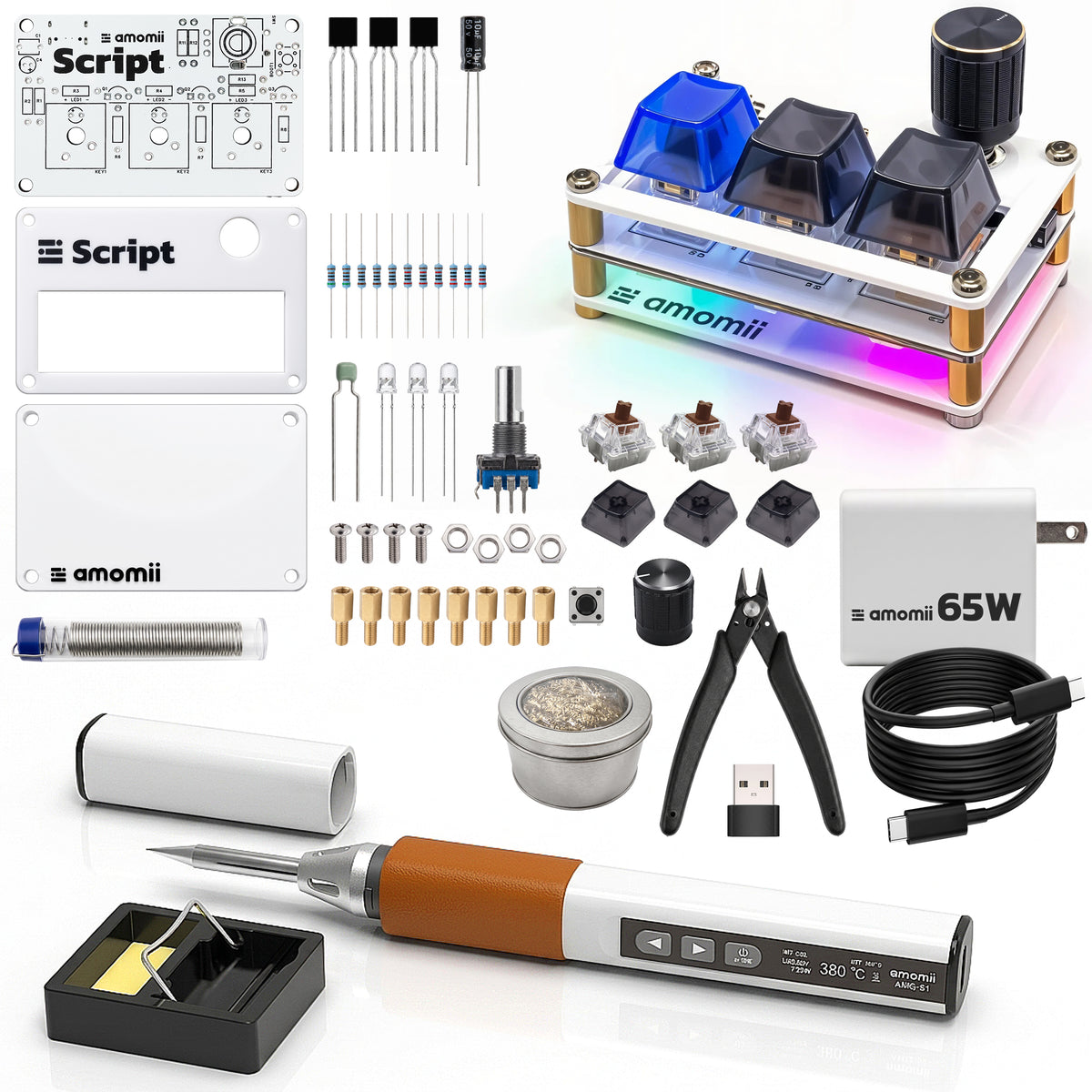

What's in the Box
amomii Quill: What's in the Box

What's in the Box?

Soldering iron, tools and consumables

  • 1 x amomii Quill smart soldering iron (Model AMQ-R1)

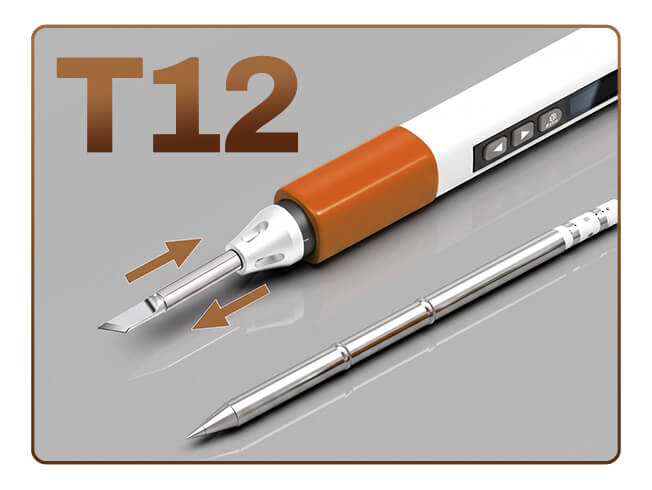

  • 1 x T12-B2 soldering tip (fitted)
  • 1 x soldering iron stand with cleaning sponge
  • 1 x brass sponge tip cleaner (supplied in a storage tin)

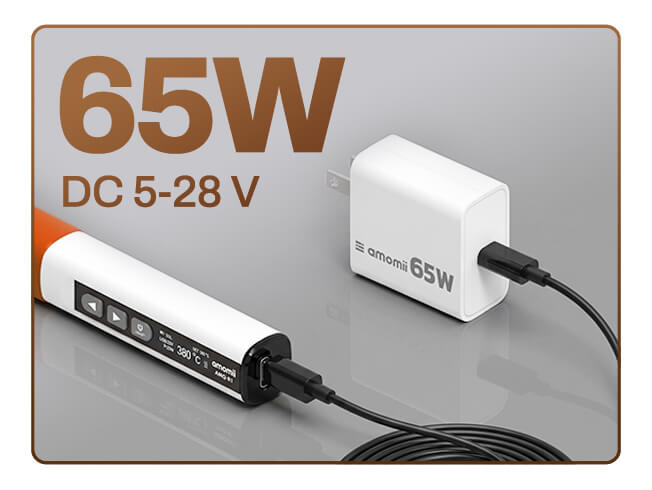

  • 1 x 65 W USB-C power supply (PD/QC)
  • 1 x USB-C to USB-C cable (2 m)
  • 1 x USB-C to USB-A adapter
  • 1 x solder wire
  • 1 x flush cutter

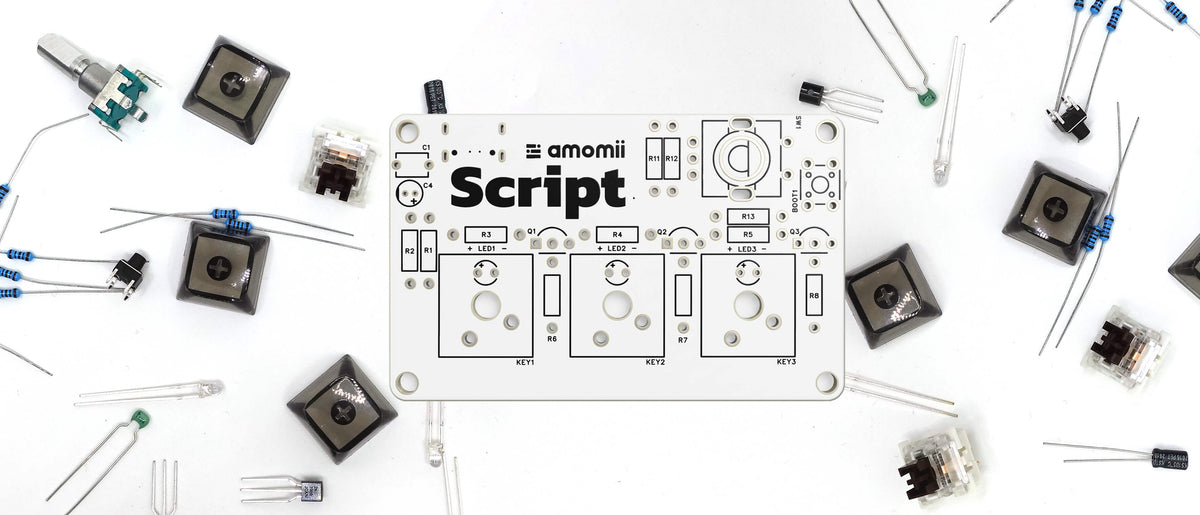

amomii Script build components (soldered by the user)

  • 1 x Script printed circuit board (surface-mount parts pre-fitted at the factory)
  • 3 x MX-compatible mechanical switches
  • 3 x MX-compatible keycaps
  • 3 x 3 mm blue LEDs
  • 3 x N-channel MOSFETs (2N7000)
  • 1 x rotary encoder
  • 1 x rotary knob
  • 1 x tactile push button
  • 2 x 5.1 kΩ resistors
  • 3 x 220 Ω resistors
  • 3 x 1 kΩ resistors
  • 3 x 20 kΩ resistors
  • 1 x 100 nF ceramic capacitor
  • 1 x 10 µF 50 V electrolytic capacitor

Enclosure hardware

  • 2 x white laser-cut printed acrylic plates (2 mm, 70 x 45 mm)
  • 8 x M3 standoffs (8 mm)
  • 4 x M3 nuts
  • 4 x M3 bolts (6 mm)

Printed materials

  • 1 x "Getting Started with amomii Quill" insert (folded A4)
  • 1 x "amomii Script" getting-started insert (folded A4)
  • 1 x Script component reference card
