IR Hacks
IR Hacks
From a Collection of Components to a Fully Functional Product
Transform a collection of components into a fully functional electronics product with amomii IR Hacks. Perfect for beginners and hobbyists, this kit empowers you to master soldering, coding, and real-world technologies, while building confidence and hands-on skills in DIY electronics projects.
Couldn't load pickup availability
Embark on an exciting journey into the realm of infrared technology with the amomii IR Hacks shield. This innovative soldering practice kit is designed to transform your Arduino UNO into a powerful infrared communication device, opening up a world of possibilities for both learning and creating.
Collapsible content

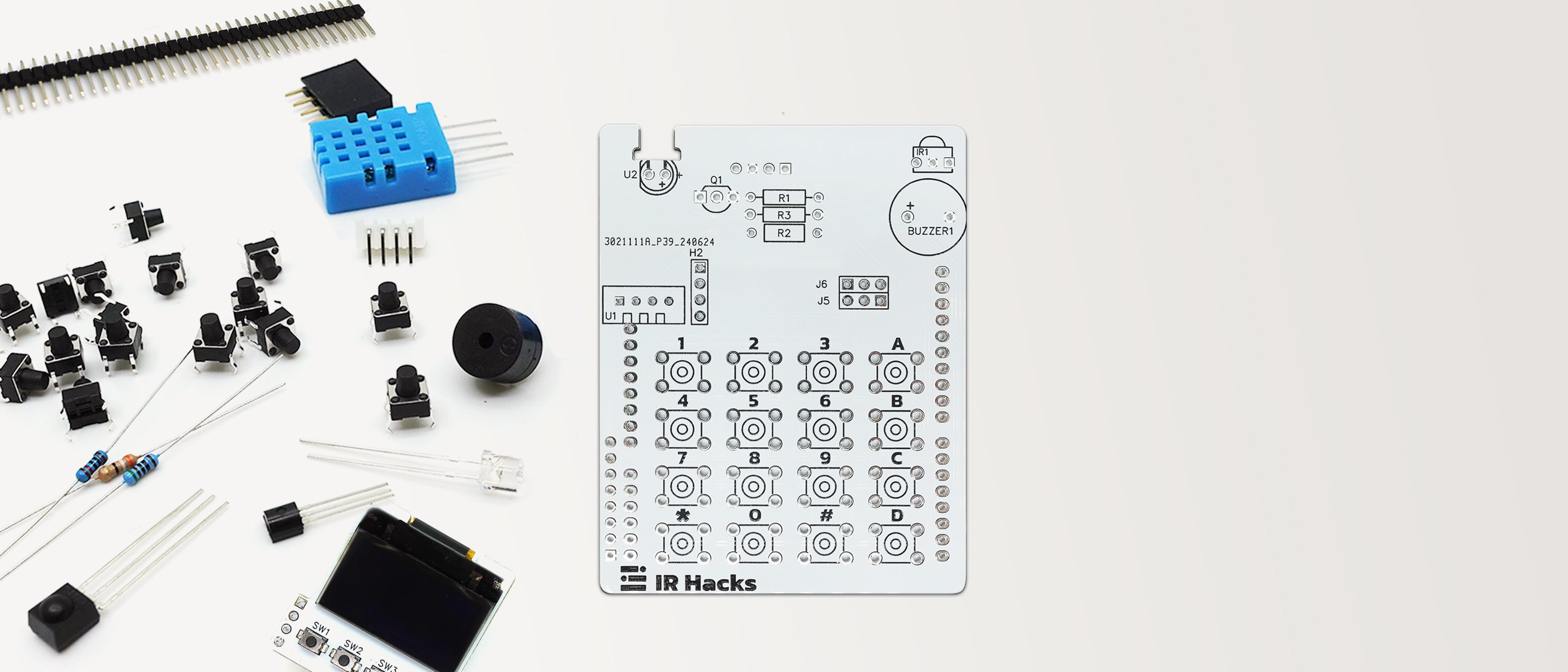

See what's Inside
1 x IR Hacks PCB
1 x amomii Blink
1 x XH Connector (4 Pin)
1 x DHT11 Sensor
1 x IR Receiver
1 x IR Transmitter
1 x Buzzer (Passive)
1 x Resistor (10KΩ)
1 x Male Header (40 Pin)
1 x Female Header (4 Pin)
16 x Tactile Push Button (6x6xH7mm)
Master Soldering
Learn essential soldering skills by assembling real components with step-by-step guidance.

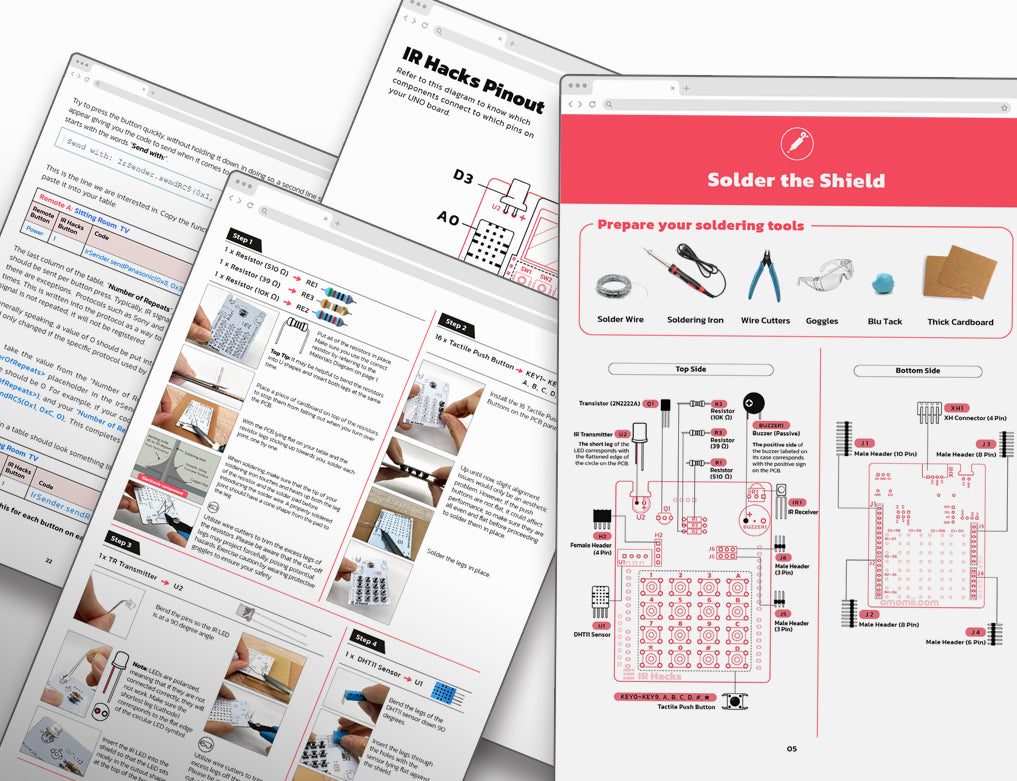

Follow the Guide
Follow the detailed guide to easily identify components and solder them in place.

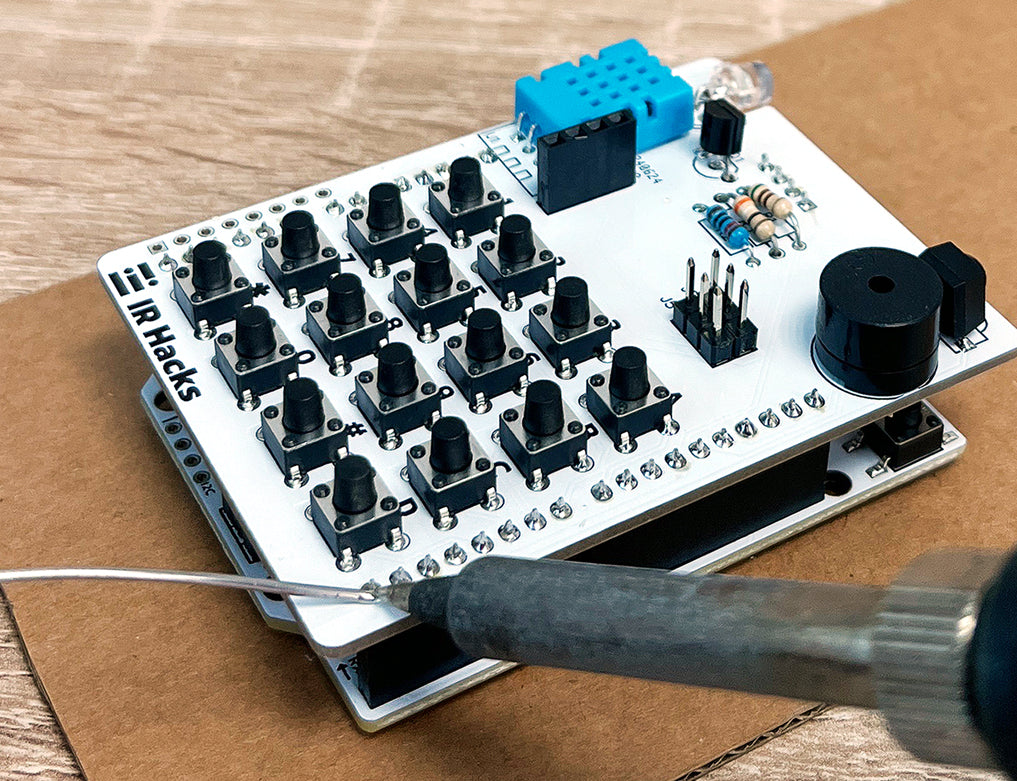

Solder Components
Solder each component onto the PCB, building a real project with hands-on experience.
Connect: Arduino UNO
After soldering, connect the shield to your Arduino UNO for a smooth, plug-and-play experience.

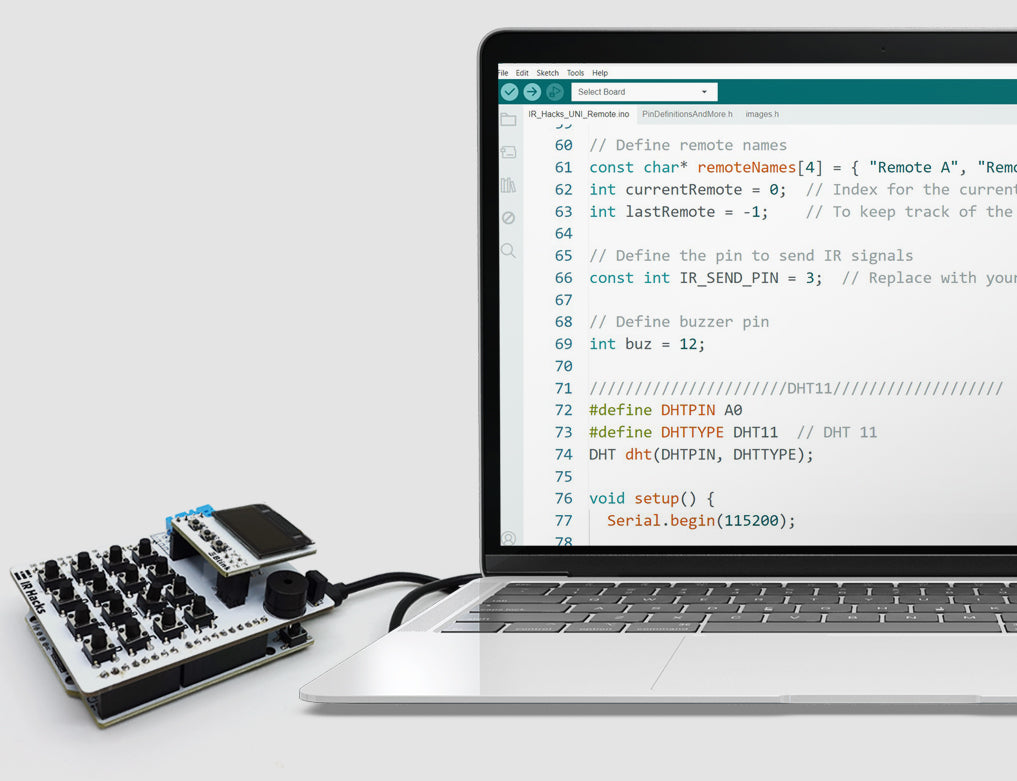

Upload Example Code
Upload provided example code or write your own programs to bring your project to life.
Interactive Projects

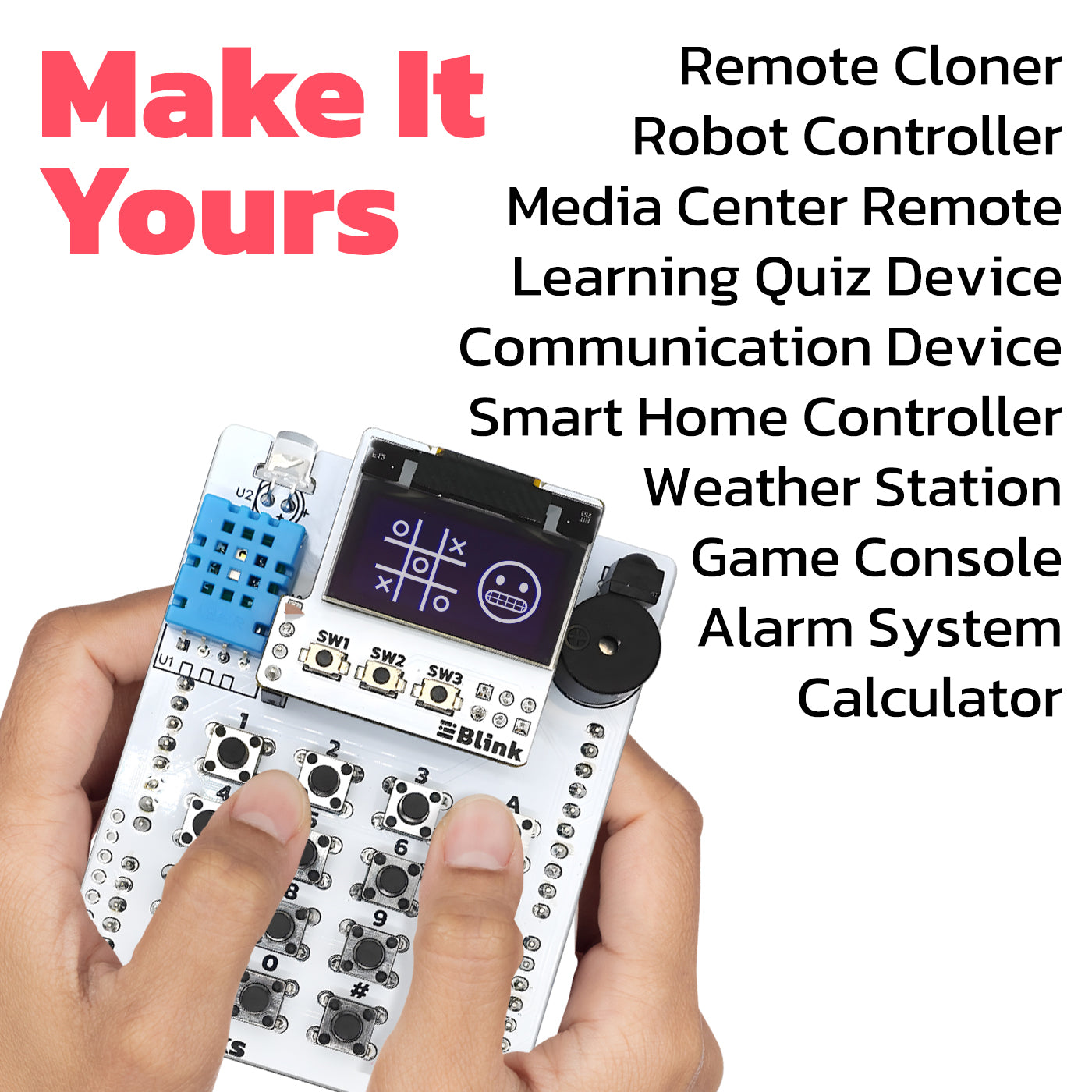

From games to controllers, build interactive projects that bring people together.

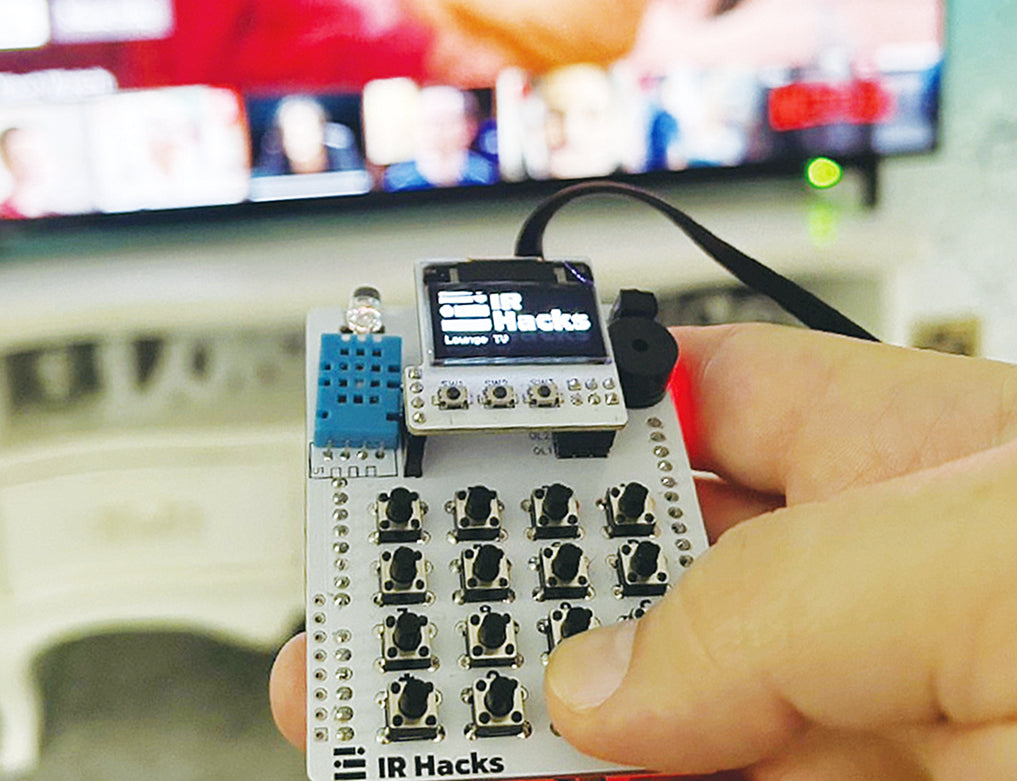

Control & Keep Track
Clone remotes and track temperature and humidity with this all-in-one project.

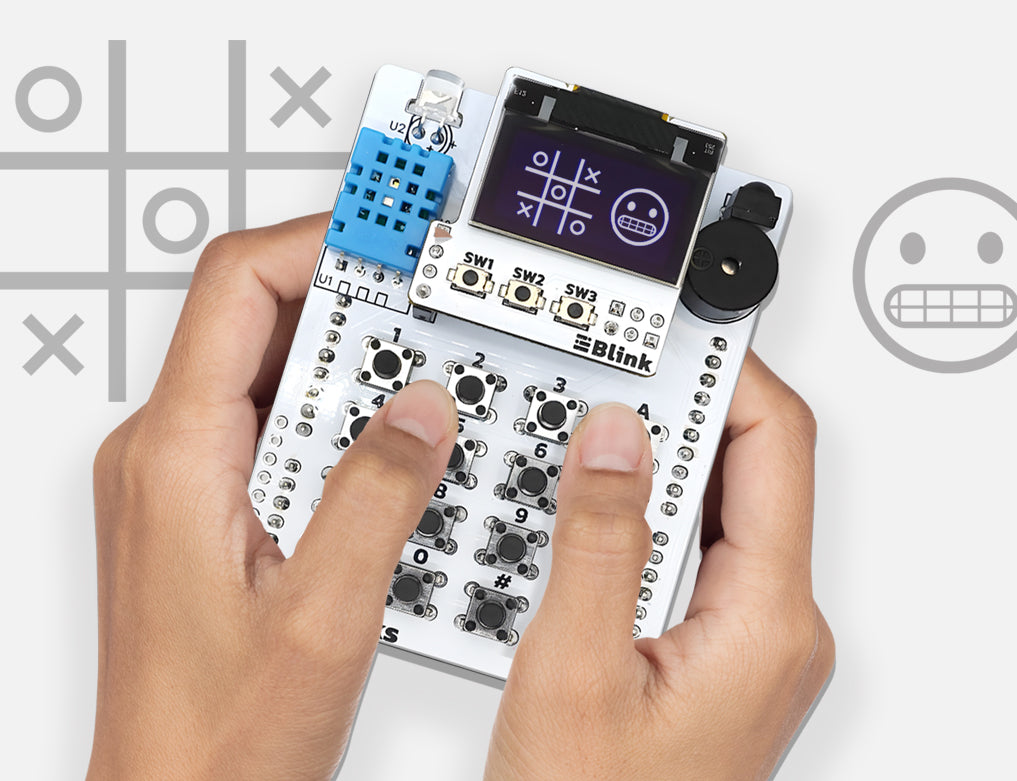

Emoji Tic Tac Toe
Dive into the fun of coding with Emoji Tic Tac Toe! Easily set up the game and challenge friends.
Create a Calculator
Build a simple calculator using the 4x4 keypad and OLED screen.
Your Own Project

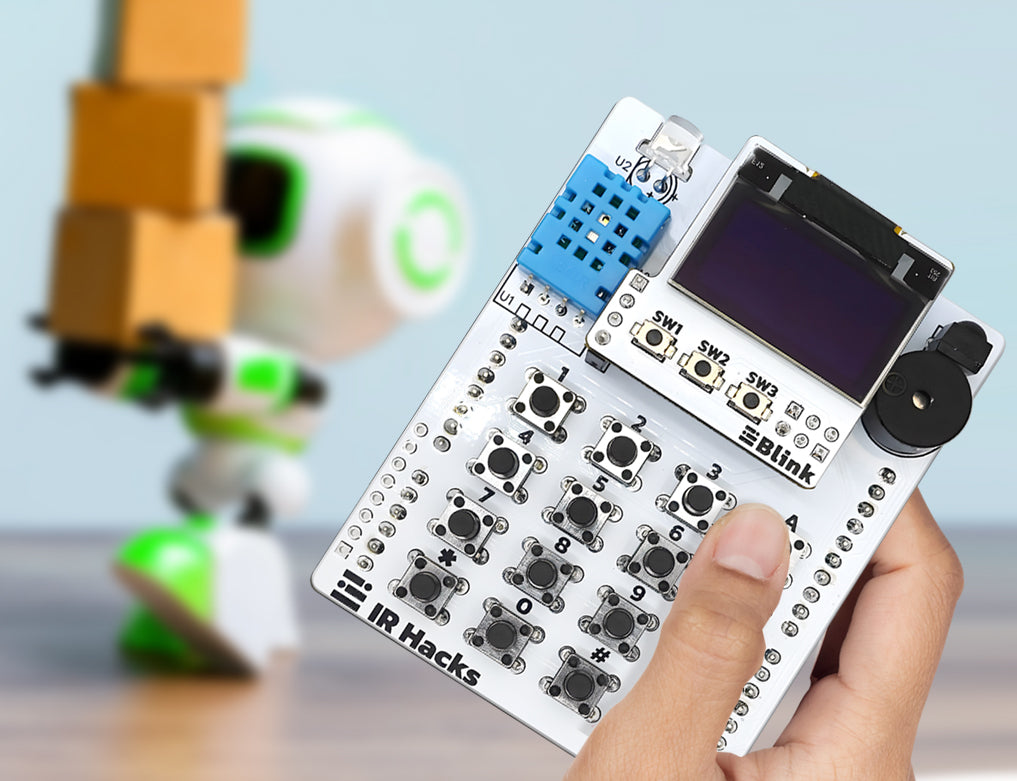

Use the IR and keypad capabilities to explore more advanced challenges, like controlling robots.
| 【1】Measure Temperature & Humidity with the DHT11 | The DHT11 sensor monitors real-time temperature and humidity. Use it in projects like weather stations or environmental monitoring to integrate climate data into your DIY electronics systems. |
| 【2】4x4 Programmable Keypad for Custom Input Control | Program the 4x4 keypad for custom input, allowing you to build remote controls, games, or interactive devices. It's fully customizable for your unique projects. |
| 【3】Auxiliary Ports for Custom Expansion & Components | The auxiliary ports are solder pads that let you connect your own components, allowing you to expand and build on the available UNO pins, adding new functionalities to your project. |
| 【4】Explore Custom Ideas | The IR Hacks shield features an integrated IR transmitter and receiver. Clone remotes, control devices, or create custom IR-based systems by sending and receiving IR signals in real-time. |
| 【5】Buzzer for Audio Feedback and Alerts | The built-in buzzer provides clear audio feedback, perfect for adding sound effects or notifications to your projects, making your devices more interactive. |
| 【6】OLED Display for Instant Feedback | The amomii Blink OLED screen provides clear, high-contrast feedback in real-time. Display anything from game elements to system messages, helping you track and control your projects with ease. |

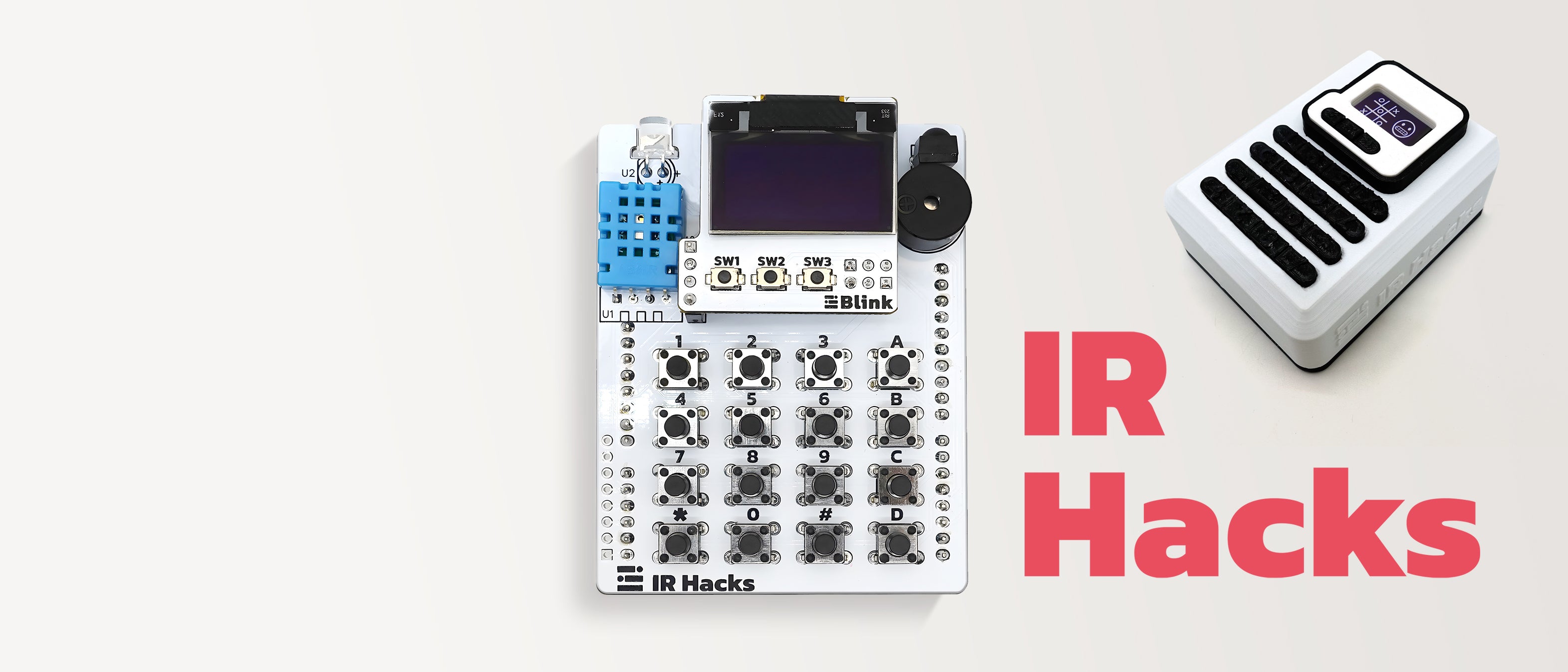

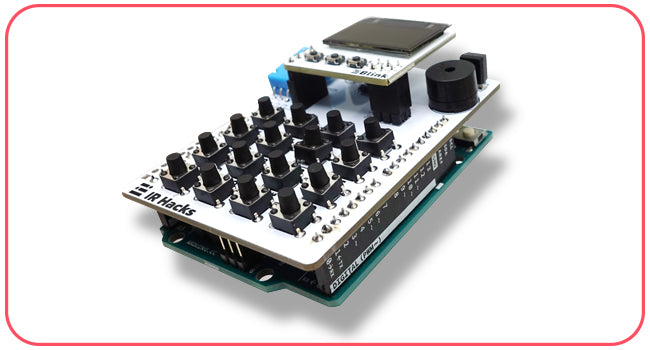

IR Hacks: Your Plug-and-Play Arduino Shield
The IR Hacks shield connects easily to Arduino UNO, expanding its capabilities with built-in IR receiver, transmitter, 4x4 keypad, and OLED screen for real-time feedback. Clone remotes, control devices, or use custom inputs to turn your UNO into an interactive platform for creative projects.

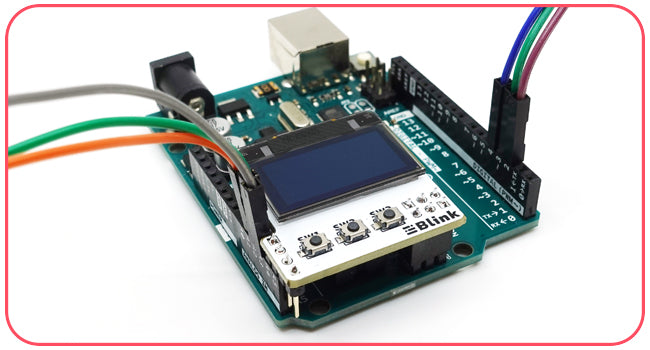

amomii Blink: Standalone I2C OLED Module
amomii Blink connects directly to the bottom of Arduino UNO, keeping all pins available. Controlled via I2C, it includes three pushbuttons for digital inputs. Whether used with IR Hacks or alone, it provides real-time data and control, enhancing your projects with its flexible, standalone design.
