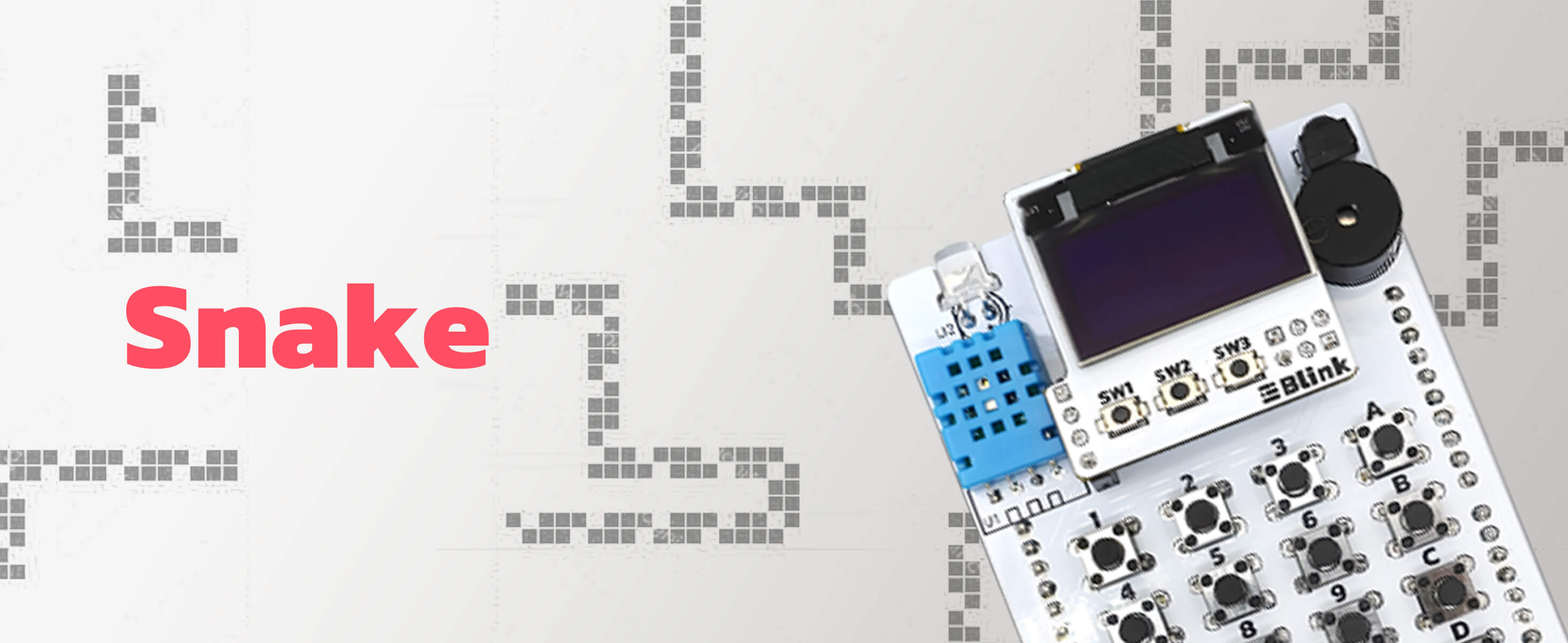

Eat and grow. That’s how it works. The more you eat, the bigger you get. That’s life, and the idea behind the game Snake. Invented in the arcades of the 1970s, the game reached iconic status when it was an included game in the Nokia 6110 in 1997. The game is simple, addictive fun at its best. Now, using your IR Hacks device, you can get your game on and see how long your snake can get!

Uploading the Project

If you haven't already uploaded the Snake code to your device, there are two ways to do it:

Use amomii Link. amomii Link is our proprietary tool for uploading code directly from our website.

a. Go to IR Hacks Link and choose your project. Today we’re picking Snake.

b. Read about the amomii Link tool.
Manual Installation: Go to the Toolbox, download the code and upload it to your device using the Arduino IDE (if you don't know what that means, use option one!)

a. Go to Toolbox.

How to play

This game uses 5 buttons on the IR Hacks device. To control your snake on the screen, button 2 is up, 4 is left, 6 is right, 8 is down, and 5 will reset the game. Eat a dot, and it gets added to your snake. The longer your snake gets, the more careful you have to be. If your snake touches any part of itself, or any of the edges of the screen, the game is over. You get 10 points for every dot you eat. If you can get to 250 points, or 25 dots eaten, that’s a great score!

Tags: IR Hacks projects

June 24, 2026

Tactile Push Button: Your Gateway to Interactive Electronics

Section 1: Overview & How It WorksHave you ever wondered how a simple press can bring a complex machine to life? In the world of DIY electronics, the humble tactile push button is the ultimate bridge between human touch and digital action. This tiny, clicky component is a staple for any maker starting their journey, offering a satisfying physical response whenever it is pressed.At its core, a tactile switch functions as a momentary gatekeeper for electricity. Inside the housing, a tiny, curved metallic disc sits above an open electrical circuit. When you apply pressure to the button cap, the disc deflects downward, bridging the internal contacts and allowing current to flow freely. The moment you release your finger, the metal springs back to its original shape, instantly breaking the connection.Understanding the layout of these four-pin switches is straightforward. The pins are internally connected in pairs. When you press the button, it temporarily connects the two separate pairs, completing your circuit and registering a successful input.Section 2: Real-World Use in Arduino ProjectsFor anyone diving into the Arduino ecosystem, mastering the push button is a foundational milestone. It serves as one of the most basic digital input devices, allowing you to feed external commands directly into your microcontrollers. Whether you are assembling a soldering practice kit or designing a custom interface, buttons introduce interactivity to your creations.Integrating a tactile switch into your electronics projects opens up endless possibilities for hands-on learning. Here are two practical ways hobbyists utilize this versatile component: Mode Selectors and Toggles: You can program your microcontroller to cycle through different software states with each press. A single button can turn an LED on and off, change the flashing pattern of a light display, or switch between different sensor modes in a DIY weather station. Custom Gaming Controllers: By pairing multiple tactile switches together on a practice kit circuit board, you can build your own retro gamepad. Each button press can send a unique command to your computer, turning your hardware build into a functional controller for simple games. Navigating the mechanics of hardware input is a rewarding step for any beginner-friendly STEM program. By mastering this single component, you unlock the ability to make your projects truly responsive to the physical world.See It in the Testudo KitEvery component in this guide is part of the Testudo soldering practice kit — a hands-on way to learn electronics, soldering, and Arduino coding from the ground up.

Learn more

June 24, 2026

Potentiometer: Your Dial for Precision Control

Section 1: Overview & How It Works Have you ever wondered how the volume knob on an old stereo works? Or how a dimmer switch smoothly adjusts the brightness of a room? The unsung hero behind these everyday actions is a simple electronics component known as the rotary potentiometer. At its core, a potentiometer is a variable resistor that allows manual control over the flow of electrical current. Inside the component sits a resistive track and a tiny sliding contact called a wiper. As you turn the physical shaft, the wiper moves along the track, altering the distance the electricity must travel. A longer path creates higher resistance, while a shorter path creates less resistance. This mechanical shift directly translates to a variable voltage output. For a maker diving into hardware, understanding this component opens up endless possibilities for physical interaction. It bridges the gap between mechanical movement and digital control. When integrating one into a practice kit, proper soldering ensures a reliable connection. Hand soldering the three terminals onto a circuit board is an excellent way to refine your technique, as the pins are spaced perfectly for a standard soldering practice session. Section 2: Real-World Use in Arduino Projects In the maker community, the potentiometer is a staple component for any beginner-friendly DIY project. Because microcontroller platforms read changing voltages, this component serves as an intuitive analog input device. It allows you to feed real-time human interaction directly into your code. Here are two classic ways to use a potentiometer in your next Arduino project: LED Brightness and Speed Control: By connecting the component to an analog input pin, you can map the position of the knob to control the blinking speed of an LED. Alternatively, you can use it to smoothly dim or brighten a light, mimicking a real-world dimmer switch. Audio and Servo Motor Control: You can use the knob to position a small servo motor precisely between 0 and 180 degrees. This setup is frequently used in robotics to control mechanical arms, steering mechanisms, or even to adjust audio volume levels in custom-built speaker systems. Whether you are assembling a basic soldering practice kit or designing an intricate STEAM learning layout, mastering this component is a fundamental milestone. It provides an immediate, tactile way to see your code interact with the physical world. See It in the Testudo Kit Every component in this guide is part of the Testudo soldering practice kit — a hands-on way to learn electronics, soldering, and Arduino coding from the ground up.

Learn more

LED — component photo from the amomii Testudo kit

June 24, 2026

LED: Light Up Your Electronics Projects

Section 1: Overview & How It WorksHave you ever wondered what makes the tiny indicator lights on your favorite gadgets glow? Meet the Light Emitting Diode, or LED for short. Unlike traditional incandescent light bulbs that use a fragile filament, an LED is a solid-state semiconductor component designed to convert electrical energy directly into visible light efficiently.At the heart of every LED is a tiny chip made from materials like Aluminum Gallium Indium Phosphide. When an electrical current passes through this material in the forward direction, electrons release energy in the form of photons. This process produces a bright, clean illumination without wasting energy as heat. Because they require very little power and are incredibly robust, they are a staple in almost every electronics project.When working on a DIY soldering practice kit, understanding orientation is crucial. LEDs are polarized, meaning electricity can only flow through them in one direction. They feature a longer leg, called the anode, which connects to the positive side of your circuit. The shorter leg, known as the cathode, connects to the negative side. Reversing this orientation will not damage the component under low voltages, but it will prevent the light from turning on.Section 2: Real-World Use in Arduino ProjectsFor anyone diving into the maker community, the humble LED is almost always the starting point for learning hardware interaction. It provides immediate visual feedback, allowing you to confirm that your circuit design and programming logic are functioning correctly.Within the Arduino ecosystem, an LED serves as an ideal output component for beginner-friendly STEM and STEAM applications. For instance, you can integrate one into a smart home system where a motion sensor triggers the light to turn on automatically. Another classic project involves building a countdown timer or a visual indicator for a temperature monitoring system, where the light changes states based on environment data.Because these components are highly sensitive to current, they are typically paired with a small resistor in series to prevent them from drawing too much power. Whether you are learning soldering for the first time or prototyping an interactive gadget, mastering this versatile component opens the door to countless creative possibilities in electronics.See It in the Testudo KitEvery component in this guide is part of the Testudo soldering practice kit — a hands-on way to learn electronics, soldering, and Arduino coding from the ground up.
