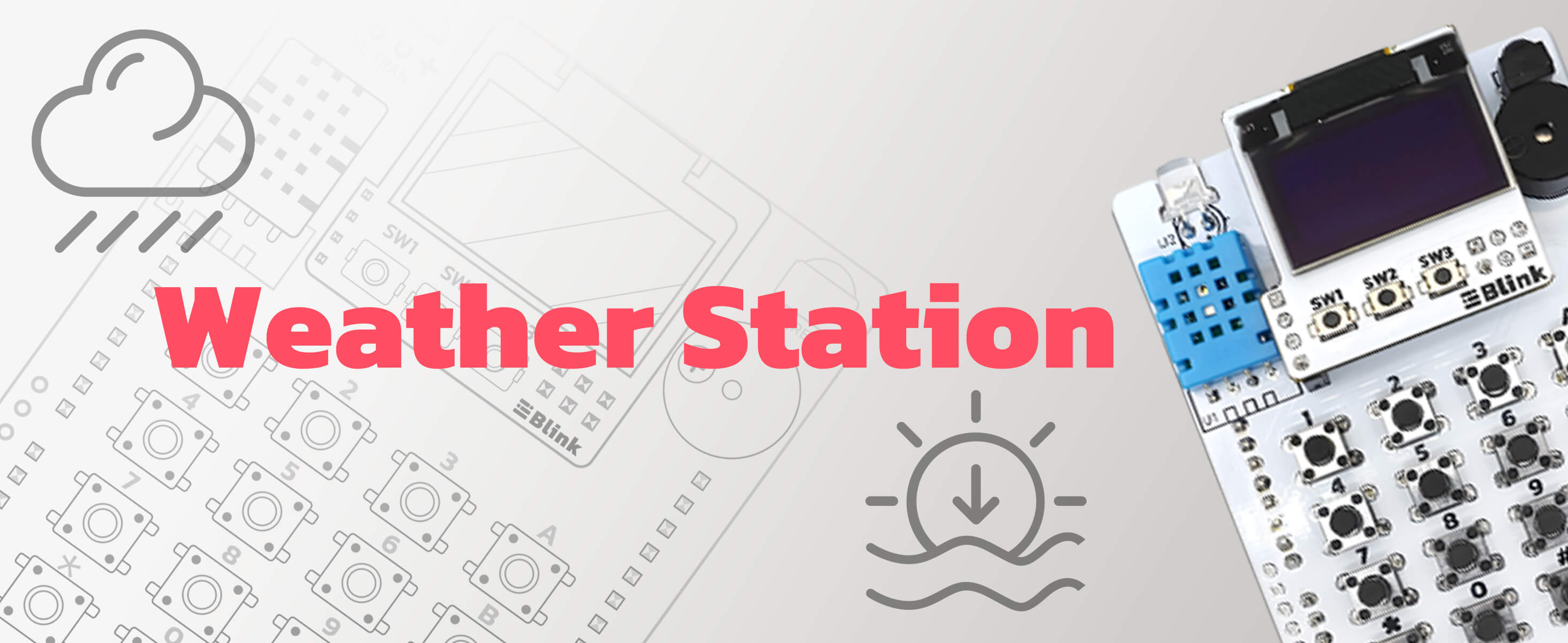

To put a little bit of added functionality into your IR Hacks device, one of the projects we've included is Weather Station. Simply put, Weather Station uses the built-in temperature and heat sensor to give you a reading of your surroundings.
Uploading the Project
If you haven't already uploaded the Weather Station code to your device, there are two ways to do it:
Use amomii Link. amomii Link is our proprietary tool for uploading code directly from our website.
a. Go to IR Hacks Link and choose your project. Today we’re picking Weather Station.
Manual Installation: Go to the Toolbox, download the code and upload it to your device using the Arduino IDE (if you don't know what that means, use option one!) a. Go to Toolbox.
What it Does
Using the temperature and humidity sensor on the IR Hacks device, the Weather Station gives you a reading of your current surroundings. By default, the temperature is set to Celsius, but if you want it to output in Fahrenheit instead, the SW1 button on the amomii Blink will change that for you.
